Linear Rail LR 6 S
Part. N° 28.0525
| TECHN. DATA / ITEMS SUPPLIED |

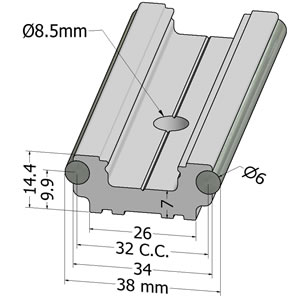

| - Aluminum rail, anodized |
| - 2 steel shafts Ø6mm Cf 53, 60+/-3 HRC |
| - Aluminum rail pre-drilled Ø8.5mm on 150mm centers |
| - For cut charge use Part # 25.1100 |
| - Stainless Version, Part # 28.0526 |
| - Full Length |
- 6 m (236.22") |
| - Weight |
- 1.18 kg/m |
| ASSEMBLY |

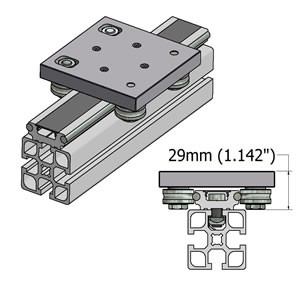

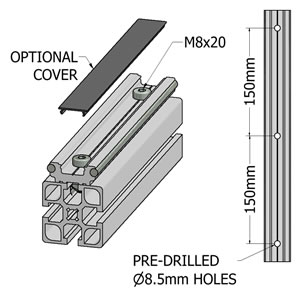

| - Fasten to T-slot with M8x20 socket head cap screws Part # 21.1202 (sold separately) |
| - Fasten to T-Slots with M8 Square Nuts or M8 Square Nuts With Position Fixing (sold separately) |
| - Cut to size centering around existing holes |
| - Drill alignment V groove allows for easy location for additional holes |
| - Optional plastic cover, part # 22.1160 |
