Rotary Turntable
Part. N° 32.2005/1
CAD DOWNLOAD ► 3D STEP | | Inventor 2012
| APPLICATIONS |
|---|
| - Multi-station assembly tables with rotating tops. Can be used for multi-station assembly line production or for a single user looking to perform the same operation multiple times before tooling up for the next step. |
| - Lazy Susan style turntables for parts bins, tool racks etc. |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Zinc die casting with steel balls | |

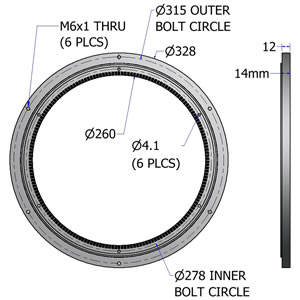

| -Dimensions above may be off by a couple of mm. Verify hole pattern prior to production. | |
| - ESD Capable | |
| - Low maintenance | |
| -Max axial load | - 300kg (661 lbs) |
| - Weight | - .575 kg |
Click here for a larger animation
| ASSEMBLY |
|---|
| - Mount inner ring to table with M4x16 SHCS (sold separately) to 45 series profiles of table. |
| - Mount rotating plate to M6 tapped holes in outer ring. |
